75AMP Rated

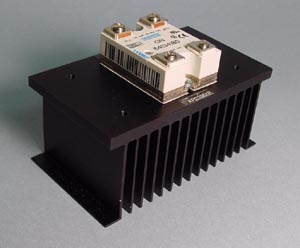

"COOL ONE" PANEL Mount Solid State Relay Assembly

Anacon's "Cool One" heat sink designs provide a thermally optimized PANEL mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080)

Heat Sink Dimensions: 5.25" x 3.0" x 2.75"

Overall size w/Single SSR and Touch Safe Cover
& DIN Clip: 5.25" x 3.0" x 4.25"

Standard Cool One Features:

All Anacon Solid State Relay Assemblies use relays tested to UL508A SCCR standards.
Current Rating 75A @ 40 Degrees C Ambient
75 Amp Rated Power Heat Sink Assembly
.8 Degrees C/Watt Heat Sink Thermal Resistance
Zero Cross Relay
Output voltages from 24Vac to 660Vac
Standard DC or AC Control Versions
Standard LED Status Indicator
Regulated Inputs- Back to Back SCR Design
Standard Built in Transient Protection
Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version
SSR Monitor Cards Available (IP00 Version only),
add suffix (-SM)
Current Transformer Cards Available, add suffix (-CT)
Touch Safe Relay Cover Provided
Safety & Noise Immunity Compliance

SPECIFICATIONS

PART NUMBER	INPUT RANGE	LOAD CURRENT	LINE VOLTAGE	TRANSIENT VOLTAGE	RELAY TYPE
APC1061P	3-32Vdc	75A @ 40 Degrees C Ambient	24-280Vac	600V Peak	Zero Cross
APC1061-1P	90-280Vac	75A @ 40 Degrees C Ambient	24-280Vac	600V Peak	Zero Cross
APC1061-2P	3-32Vdc	75A @ 40 Degrees C Ambient	48-660Vac	1200V Peak	Zero Cross
APC1061-3P	90-280Vac	75A @ 40 Degrees C Ambient	48-660Vac	1200V Peak	Zero Cross

Notes:

Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
Ratings are based upon relays being mounted either individually or side by side with zero spacing.
Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
Monitor Output faults or load alarms with Anacon's SSR Monitor Cards available for all DIN mount IP00 relays. See APC MON datasheet for details.

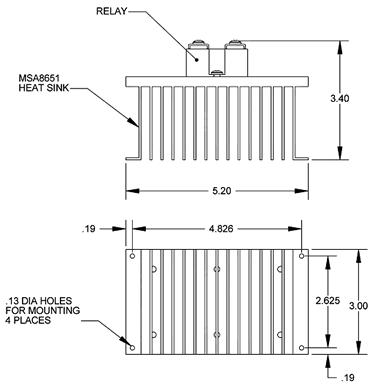

MECHANICAL DRAWING

THERMAL CURVE
