40AMP Rated
"COOL ONE" PANEL Mount Solid State Relay Assembly
Anacon's "Cool One" heat sink designs provide a thermally optimized Panel mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080) |
| |
40A Panel Mount SSR Assembly Dimensions:
6.0" x 4.75" x 3.0"
|
Standard Cool One Features:
|
SPECIFICATIONS
|
| PART NUMBER IP00 |
PART NUMBER IP20 |
INPUT RANGE |
LOAD CURRENT |
LINE
VOLTAGE |
TRANSIENT VOLTAGE |
| APC4020P |
APC7020P |
3-32Vdc |
.1A-40A @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4021P |
APC7021P |
90-280Vac |
.1A-40A @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4022P |
APC7022P |
18-36Vac |
.1A-40A @40 Degrees C Ambient |
24-280Vac |
600V Peak |
| APC4120P |
APC7120P |
3-32Vdc |
.1A-40A @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
| APC4121P |
APC7121P |
90-280Vac |
.1A-40A @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
| APC4122P |
APC7122P |
18-36Vac |
.1A-40A @40 Degrees C Ambient |
48-660Vac |
1200V Peak |
|
Notes:
- Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
- Ratings are based upon relays being mounted either individually or side by side with zero spacing.
- Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
- Monitor Output faults or load alarms with Anacon's SSR Monitor Cards available for all DIN mount IP00 relays. See APC MON datasheet for details.
|

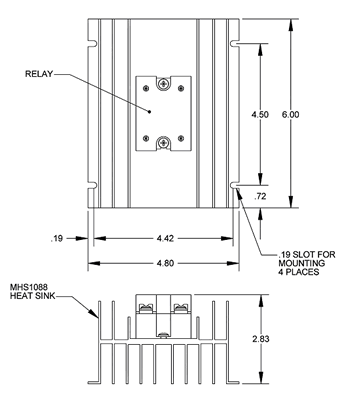

| MECHANICAL DRAWING |

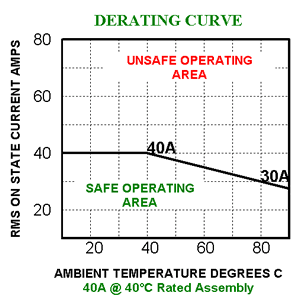

THERMAL CURVE |
|
|
|
