Solid State Mercury Replacement

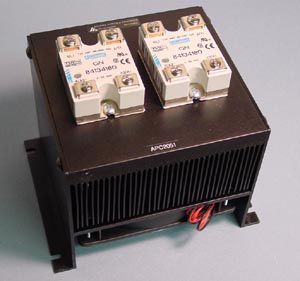

"COOL ONE" 100A 3 Phase 2 Leg Break Panel Mount

Anacon's "Cool One" heat sink designs provide a thermally optimized DIN mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080)

Assembly Dimensions:
5" X 5" X 6"

Standard Cool One Features:

All Anacon Solid State Relay Assemblies use relays tested to UL508A SCCR standards.
Current Ratings 100AMP Continuous
Zero Cross Relays
Output voltages from 24Vac to 660Vac
Standard DC or AC Control Versions
Standard LED Status Indicator
Regulated Inputs- Back to Back SCR Design
Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version
Provision for overtemp bimetal switch
Safety & Noise Immunity Compliance
135mm DIN Relay w/Removable Touch Safe Cover Includes:
Safety Cover, Relay, Heat Sink & DIN Clip

SPECIFICATIONS

Zero Cross
PART NUMBER	INPUT RANGE	LOAD CURRENT	LINE VOLTAGE	TRANSIENT VOLTAGE	FAN VOLTAGE
APC6010	4-32Vdc	100A/Leg @40 Degrees C Ambient	24-660Vac	1200V Peak	115Vac
APC6020	90-280Vac	100A/Leg @40 Degrees C Ambient	24-660Vac	1200V Peak	115Vac
APC6030	18-36Vac	100A/Leg @40 Degrees C Ambient	24-660Vac	1200V Peak	115Vac
Add suffix -1 to part number for DC Fan Option

Notes:

Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
Ratings are based upon relays being mounted either individually or side by side with zero spacing.
Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.

FAN SPECIFICATIONS
	VOLTAGE (V)	CURRENT (A)	SPEED (RPM)	POWER (W)	AIRFLOW (CFM)	Max. AIR PRESSURE (Inch-H2O)	NOISE (dBA)	WEIGHT (g)	BEARING TYPE
AC Fan	115 (50/60Hz)	0.12/0.11	2250/2750	13/12	29/36	.012/0.18	36/39	280	Sleeve
DC Fan	24Vdc	0.15	3200	3.6	50	0.19	33.0	135	Sleeve

Replaces the following Mercury 3 Pole Relays:
DuraKool: P/N# CFC2-727 120VAC, CFC2-732 24VDC
MDIP/N# 2100N0-120A, P/N# 2100NO-24D
MAGNECRAFTP/N# WM60AA~120A, WM60AA~24D note: 60 amps only
