Dual 50AMP Rated Assembly
(25AMP per Relay)

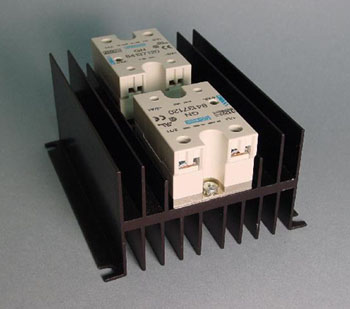

"COOL ONE" Dual Panel Mount Solid State Relay Assembly (SSR)
Anacon's "Cool One" Power Solid State Relay Assemblies are built to perform in a wide variety of industrial control applications. High performance Solid State Relays and thermally correct heat sinks are selected to insure trouble free service. |
| |
| |
Standard Cool One Features:
|
SPECIFICATIONS
|
| PART NUMBER |
INPUT RANGE |
TERMINAL TYPE |
LOAD CURRENT |
LINE VOLTAGE |
OPERATING
FEATURE |
TRANSIENT VOLTAGE |
| APC7120DP |
3-32Vdc |
Stripped Wire IP20 |
.1A-25A/Relay @
40 Degrees C Ambient |
48-660Vac |
Zero Cross |
1200V Peak |
| APC7121DP |
90-280Vac |
Stripped Wire IP20 |
.1A-25A/Relay @
40 Degrees C Ambient |
48-660Vac |
Zero Cross |
1200V Peak |
| APC4120DP |
3-32Vdc |
Ring Terminal |
.1A-25A/Relay @
40 Degrees C Ambient |
24-280Vac |
Zero Cross |
600V Peak |
| APC4121DP |
90-280Vac |
Ring Terminal |
.1A-25A/Relay @
40 Degrees C Ambient |
24-280Vac |
Zero Cross |
600V Peak |
|
Notes:
- Combined output current must not exceed 50 amps.
- Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
- Ratings based upon relays being mounted either individually or side by side with zero spacing.
- Ring terminal versions available with Touch Safe Covers upon request.
- For random turn on version P/N's, call 800-466-9080.
- Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
- Monitor Output faults or load alarms with Anacon's SSR Monitor Cards available for all DIN mount relays. See APC MON datasheet for details.
|
|
|
