40 AMP Rated

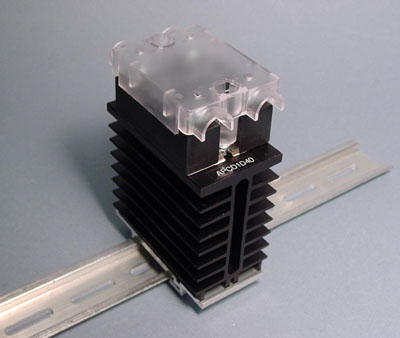

"COOL ONE" DIN Mount DC Output Solid State Relay Assembly
Anacon's "Cool One" heat sink designs provide a thermally optimized DIN mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080) |
| |
| |
Standard Cool One Features:
- Current Ratings from 0.02A to 28A
- Output voltages from 0-500VDC
- Regulated Inputs - Back to Back SCR Design
- Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version Touch Safe
- NOTE: DC Inductive Loads must be diode suppressed to prevent SSR damage.
|
SPECIFICATIONS
|
| PART NUMBER IP00 |
INPUT RANGE |
LOAD CURRENT |
LINE VOLTAGES |
SURGE CURRENT
10ms |
| APCD1D07 |
3.5-32Vdc |
.02-8A @ 40C Ambient |
0-100Vdc |
15A |
|
APCD1D12 |
3.5-32Vdc |
.02-12A @ 40C Ambient |
0-100Vdc |
28A |
| APCD1D20 |
3.5-32Vdc |
.02-20A @ 40C Ambient |
0-100Vdc |
42A |
| APCD1D40 |
3.5-32Vdc |
.02-28A @ 40C Ambient |
0-100Vdc |
106A |
| APCD2D07 |
3.5-32Vdc |
.02-7A @ 40C Ambient |
0-200Vdc |
22A |
| APCD2D12 |
3.5-32Vdc |
.02-12A @ 40C Ambient |
0-200Vdc |
27A |
| APCD4D07 |
3.5-32Vdc |
.02-7A @ 40C Ambient |
0-400Vdc |
17A |
| APCD4D12 |
3.5-32Vdc |
.02-10A @ 40C Ambient |
0-400Vdc |
36A |
| APCD5D07 |
3.5-32Vdc |
.02-7A @ 40C Ambient |
0-500Vdc |
19A |
| APCD5D10 |
3.5-32Vdc |
.02-8A @ 40C Ambient |
0-500Vdc |
29A |
|
Notes:
- Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
- Ratings are based upon relays being mounted either individually or side by side with zero spacing.
- Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
|

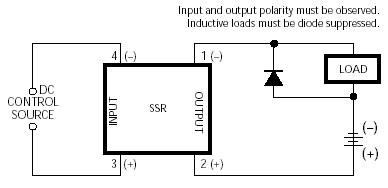

TRANSIENT PROTECTION
|
DC inductive loads must be diode suppressed to prevent damage to Solid State Relay. Diode should be fast recovery type with PIV greater than the supply voltage. |
 |
