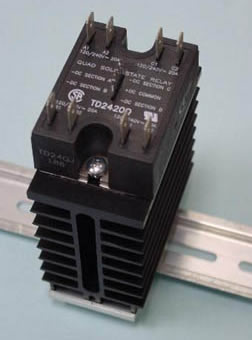

"COOL ONE" DIN Mount Quad Output Solid State Relay Assembly

Anacon's "Cool One" heat sink designs provide a thermally optimized DIN mounting platform for today's high performance solid state relays. The listings below provide the actual load currents that each part type will support. If you're not sure about how to select the correct product for your application, call Anacon, toll free and discuss your application with us. (800-466-9080)

Standard Cool One Features:
  • Current Ratings from 0.1A to 20A
  • Zero Cross Relays
  • Output voltages from 24Vac to 200Vac
  • Standard DC or AC Control Versions
  • Standard Relays, UL/cUL Recognized, TUV Approved & CE Compliant Version
  • Safety & Noise Immunity Compliance
  • Control LED & Random Turn On model available on Special order

SPECIFICATIONS
PART NUMBER INPUT RANGE LOAD CURRENT LINE VOLTAGE TRANSIENT
VOLTAGE		 RELAY TYPE
APCQD24 3-32Vdc

10A / Leg @ 40 Degrees C Ambient

 24-240Vac 600V Peak Zero Cross

Notes:

  • Combined output current must not exceed 40amp and 20amp rating output.
  • Ratings based upon 100% duty cycle for 20 minutes or 80% duty cycle continuous.
  • Ratings are based upon relays being mounted either individually or side by side with zero spacing.
  • Cool One's unique construction allows better performance than conventional heat sink designs even when mounted side by side.
