Zero Cross SCR Power Controller Users Manual (Burst Fire)
SSR Intelligent Power Control Module


1 Ordering Code

Zero Cross SSR
Controller Assembly P/N		 Description Inputs
APCSCR1Z
SSR Mount Burst Firing Control Module, Volts, mA Input, Pot
 0-10V, 0-5V, 2-10V, 1-5V,
4-20mA, 0-20mA, Potentiometer
APCSCR1Z-135
SSR Mount Burst Firing Control Module, 0-135Ω Input, 24VAC Power Only
  0-135Ω
APCSCR1Z-REV

Reverse Acting Output Option

  0-10V, 0-5V, 2-10V, 1-5V,
4-20mA, 0-20mA, Potentiometer
APCSCR1Z-PL

SSR Mount Burst Firing Control Module with Power Limit Option, 24VAC Power Only

  0-10V, 0-5V, 2-10V, 1-5V,
4-20mA, 0-20mA, Potentiometer

Top of Page

2 Description

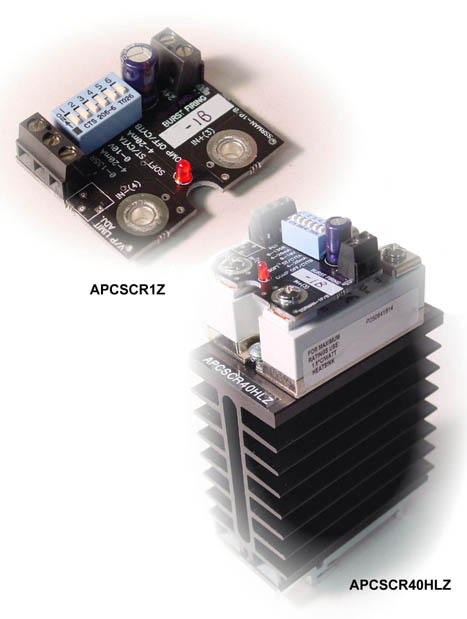

The APCSCR1Z is a burst firing control module designed for use with standard footprint zero cross or random fire SSRs (Solid State Relays).  The module mounts directly on the SSR's input screws.  The module operates by varying duty cycle of SSR's control input.  The power delivered to the load is proportional to the command input signal.

Top of Page


2.1 Features
  • Command input accepts 4-20mA, 0-10V, 0-5V, 0-135Ω, Potentiometer
  • Configurable for 4 different cycle times
  • Drives multiple solid state relays (SSRs)
  • Small (1.75" x 1.40") module mounts on the input terminals of an inexpensive SSR
  • Fits under touch-safe covers
  • LED output indicator
  • Adjustable Power Limit (-PL) Option
  • Single phase and three phase control

Top of Page


3 Installation
WARNING: FIRE HAZARD!!  Even quality electronic components CAN FAIL KEEPING FULL POWER ON!  Provide a SEPARATE (redundant) OVER TEMPERATURE SHUTDOWN DEVICE to switch the power off if safe temperatures are exceeded.
WARNING: HIGH VOLTAGE!!  This control is installed on a Solid State Relay with high voltage on it.  This control must be installed in a GROUNDED enclosure by a qualified electrician in accordance with applicable local and national codes including NEC and other applicable codes.  Provide a safety interlock on the door to remove power before gaining access to the device.
Top of Page

3.1 Mounting Instructions
The APCSCR1Z mounts directly to the control input terminals an SSR.  Some relays have short input screws and longer screws will be required to reach through the contacts on the APCSCR1Z.  Be sure to observe the correct polarity when mounting the module (module should be positioned over the SSR).  The module should sit firmly on top of the SSR when the screws are tightened.

Top of Page


3.2 Electrical Connections
See the WIRING DIAGRAMS at the end of this document.  Make sure the module ordered is the correct module for the application before wiring.

Before wiring the module, all Dip Switch settings for the command input and special features should be setup properly per the Dipswitch Configuration Section.

Top of Page


4 Operation
Top of Page

4.1 Power

The APCSCR1Z power requirement is 24VAC +/-15% 47-63Hz, 24VDC +30%/-10%.

Top of Page


4.2 24V Power Fusing
Fusing may be accomplished by fusing each module separately or fusing groups of modules with either primary or secondary fusing. The current draw of each APCSCR1Z is 65mA max.

Top of Page


4.3 Command Input
The APCSCR1Z can accept 4-20mA, 0-10V, 0-5V, and Potentiometer inputs. The APCSCR1Z-135 can only accept a 0-135Ω Input, and must be used with 24VAC Power.  All command inputs are not isolated from the 24V power input, they share a common ground.  The type of command input can be configured via the dipswitch.  The default setting is 0-5V/potentiometer.

When wiring multiple APCSCR1Z's together, follow the guidelines in the Wiring Multiple APCSCR1Z's section.

Any leg of the command input can tolerate shorts to the (0V) input. Connecting the 24V power to the command input will cause damage to the unit.

Top of Page


4.3.1 Input Fail-Safe Protection
If the signal sent to the APCSCR1Z's command input should become electrically open, the control output will be forced to an off or less than 5% output power state.

Top of Page


4.4 Cycle Times
The APCSCR1Z has 4 available cycle times of 200mS, 1S, 10S, and 100S.

Generally, the cycle time should be chosen based on the mass of the load to be controlled; the larger the load mass, the longer the cycle time can be.  Generally, it's best to choose the longest cycle time that can be used without causing process ripple.

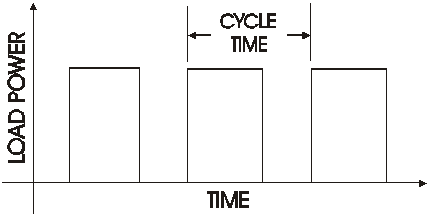

Cycle Time Plot

Cycle Time Plot

Top of Page


4.5 Power Limit
The Power Limit option can be ordered as APCSCR1Z-PL.  The Power Limit feature is used to limit the average power delivered to the load.  The power limit is adjustable via a potentiometer located just below the input terminal block.  The Power Limit feature is only available for use with 24VAC Power.

Top of Page


4.5.1 Power Limit Adjustment Procedure

The Power Limit is adjustable from 5% to 100% of the max load power (0-100% for 1-5V or 4-20mA ranges).  Setting the Power Limit potentiometer half way corresponds to a power limit of approximately 55%.  With the command input set to approximately 100% (on startup) turn the pot fully CCW.  Then just turn the pot CW until the desired output power is achieved.

Top of Page


4.6 Configuration Dipswitch
The configuration dipswitch is used for setting up the command input and the cycle time.  Using a pen point, gently push the switch up for on and down for off according to the setup outlined in the table below.

COMMAND INPUT 1 2 3 5
0-5V (Default)
Off
Off
Off
Off
Potentiometer
Off
Off
Off
Off
0-10V
Off
Off
On
Off
4-20mA
Off
On
Off
On
1-5V
Off
Off
Off
On
2-10V
Off
Off
On
On
0-135Ω*
On
Off
Off
Off
*Module must be ordered as APCSCR25/40/50-1P-135 for 0-135Ω input support.

0-135Ω input support is only usable with 24VAC Power.

CYCLE TIME

4 6
200mS
Off
Off
1 Second
Off
On
10 Seconds
On
Off
100 Seconds
On
On
Top of Page

4.7 Control Output
The APCSCR1Z SSR output drive is a DC pulsed current limited drive signal of 10V/15mA (24VAC Power) or 10V/9.5mA (24VDC power).  This is more than enough current for driving most 3-32V standard SSRs, however it is still important to review the data sheet for the SSR you would like to use for compatibility with the APCSCR1Z's output drive.  The control output can tolerate a momentary direct short.  The following graph will allow you to verify the SSR's compatibility with the APCSCR1Z over wide input voltage variations.

APCSCR1Z Output Drive Current vs. SSR Input Voltage Drop

Top of Page

4.8 Output LED
The APCSCR1Z's RED output LED will turn on when the output is on.  The output LED is wired in series with the SSR's input.  If there is a poor connection on the SSR input terminals or a problem with the SSR's input, the output LED will not become energized.

Top of Page


4.9 Three Phase Operation
One APCSCR1Z can be used to control two poles of a three phase load using two SSRs with their control inputs wired in parallel.  The Module should be wired as shown in the three phase wiring diagrams sections.  The Control Output section should be reviewed to make sure that the total input current requirements of the two SSRs can be achieved with the APCSCR1Z.

Top of Page


4.9.1 Three Phase Operation - Cycle Times
When using the APCSCR1Z to control three phase loads, the cycle time should be set for at least one second and preferably 10 or 100 seconds.  This will maximize the control resolution and minimize any load imbalances.

Top of Page


4.10 Wiring Multiple Units
If more than one APCSCR1Z is to be used from a non-isolated or common command signal:
  1. A common power transformer can be shared.  If the input selected is 0-10V or 0-5V, the inputs should be wired in parallel.
  2. If multiple units must be powered from one power transformer and 4-20mA input is selected, one module should be set for 4-20mA and the remaining modules should be set for 1-5V.
  3. If the command is 4-20mA, and the command inputs are to be wired in series, a separate power transformer for each module is required to isolate the inputs.

Top of Page


4.10.1 Connection Power & Commands in Parallel
When multiple APCSCR1Z power inputs and commands are wired in parallel, all of the 0V terminals must be connected together as follows:
Power:
Command:
0V----0V----0V----->
0V----0V----0V---->
24V----24V----24V----->
IN-----IN-----IN----->
No crossing of the power input feed or command signal is permitted.  If for some reason the power should become crossed, it will cause a direct short in the system.  If properly fused, the fuse will blow and the APCSCR1Z will not be damaged.  If the command inputs are wired improperly, damage to APCSCR1Z can result.

We do not guarantee operation of the APCSCR1Z with any other manufacturer's SSR control module.  Using them in the same circuit may cause either module to be damaged.

Top of Page

5 Electrical Specifications
Command Inputs
4-20mA, 0-10V, 0-5V, 0-135Ω, Pot
Input Impedance
10K Ω (0-10V), 250Ω (4-20mA), 100K Ω (0-5V)
0-135Ω  Excitation Current
13mA max
Control Output
SSR Drive, nominally 10V@15mA (24VAC), 10V@9.5mA (24VDC)
Output Resolution
0.5% for 4-20mA, 0-5V, Pot and 0-10V. 1% for 0-135Ω
Output Linearity
1.5% for 4-20mA, 0-5V, Pot and 0-10V. 5% for 0-135Ω
Power Limit Range
5-100% of max load power
External Potentiometer Res.
10K Ω-25K Ω
Ambient Temperature Range
0 to 70 °C
Power Supply
24VAC +15/-15%, 24VDC +30%/-10%
Power Consumption
Less than 2 Watts
Top of Page

6 Mechanical Dimensions


Max Height is 0.6"

Top of Page

7 Contact Information
Anacon Power & Controls
800-466-9080
www.anaconpower.com

Top of Page

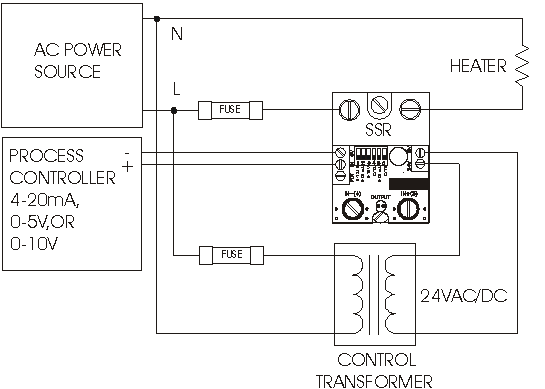

8 Wiring Diagram (4-20mA, 0-5V, 0-10V Inputs)

Top of Page

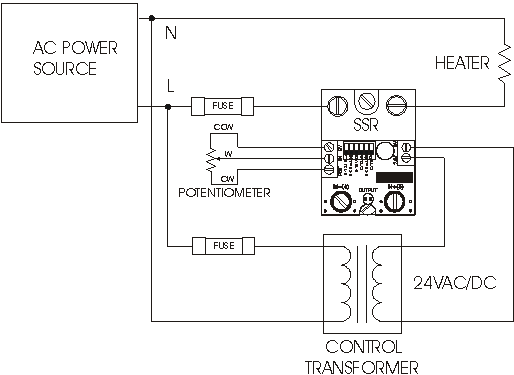

9 Wiring Diagram (Potentiometer Input)

Top of Page

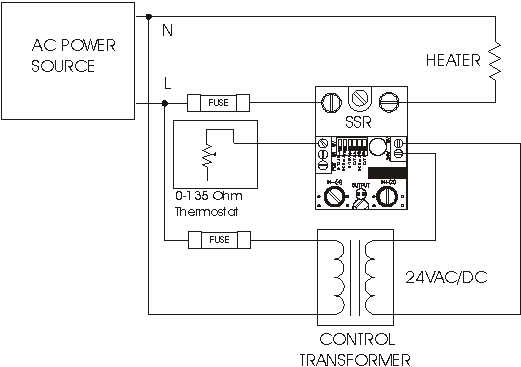

10 Wiring Diagram (0-135Ω Input)

Top of Page

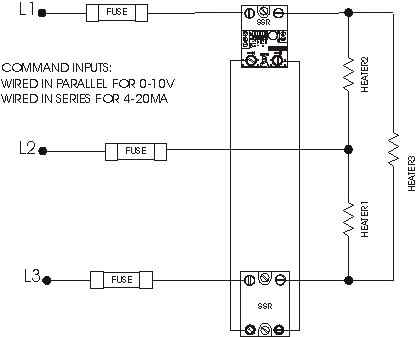

11 Wiring Diagram (3 Phase Delta)

Top of Page

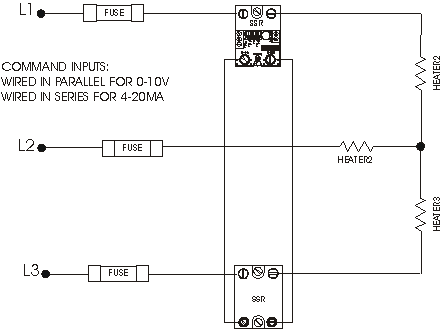

12 Wiring Diagram (3 Phase Wye)
