APCSCR Series Power SCR Controller Users Manual (Phase Angle)
SSR Intelligent Phase Angle Control Assemblies


1 Ordering Code for Controller Cards

Power SCR Controller Assembly P/N Description Controller Card P/N
APCSCR25/40/50 SSR Mount Phase Angle Control Module, Volts, mA Input, Pot APCSSRMAN-1P
APCSCR25/40/50 - VL SSR Mount Phase Angle Control Module, Volts, mA Input, Pot, Voltage Limit Option APCSSRMAN-1P-VL
APCSCR25/40/50 - 135 SSR Mount Phase Angle Control Module, 0-135Ω Input APCSSRMAN-1P-135
APCSCR25/40/50 - PWM SSR Mount Phase Angle Control Module, PWM Input APCSSRMAN-1P-PWM
Top of Page

2 Description

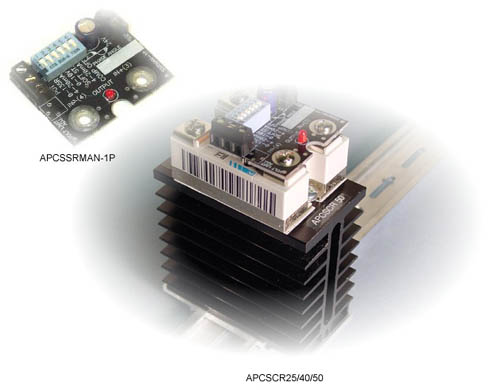

The APCSSRMAN-1P is a phase angle control module designed for use with standard footprint random fire SSRs (Solid State Relays).  The module mounts directly on the SSR's input screws.  The module operates by varying the firing point of the SSR's input.  The power delivered to the load is proportional to the command input signal.  The APCSSRMAN-1P series will not operate correctly with zero cross fired SSRs.

Top of Page


2.1 Features
  • Provides true linear power output phase angle control
  • Small (1.75" x 1.40") module mounts on the input terminals of an inexpensive SSR
  • Command input accepts 4-20mA, 0-10V, 0-5V, 0-135Ω, Pot, PWM
  • Configurable line voltage compensation increases stability of your process
  • Configurable soft start for high inrush loads
  • Automatic 50/60Hz operation
  • Adjustable Voltage Limit (-VL) Option
  • Drives multiple solid state relays
  • Single phase and three phase control

Top of Page


3 Installation
WARNING: FIRE HAZARD!!  Even quality electronic components CAN FAIL KEEPING FULL POWER ON!  Provide a SEPARATE (redundant) OVER TEMPERATURE SHUTDOWN DEVICE to switch the power off if safe temperatures are exceeded.
WARNING: HIGH VOLTAGE!!  This control is installed on a Solid State Relay with high voltage on it.  This control must be installed in a GROUNDED enclosure by a qualified electrician in accordance with applicable local and national codes including NEC and other applicable codes.  Provide a safety interlock on the door to remove power before gaining access to the device.
Top of Page

3.1 Mounting Instructions
The APCSSRMAN-1P is mounted directly to the control input terminals of an application specific SSR.  Some relays have short input screws and longer screws will required to reach through the contacts on the APCSSRMAN-1P.  Be sure to observe the correct polarity when mounting the module (module should be positioned over the SSR).  The module should sit firmly on top of the SSR when the screws are tightened.

Top of Page


3.2 Electrical Connections

See the WIRING DIAGRAMS.  Make sure the module ordered is the correct module for the application before wiring.

Before wiring the module all Dip Switch settings for the command input and special features should be setup properly per section 4.6.

Top of Page


4 Operation
Top of Page

4.1 Command Input

The APCSCR25/40/50 SCR Power Controller can accept 4-20mA, 0-10V, 0-5V, and Potentiometer and PWM inputs.

The APCSCR25/40/50 135 can only accept 0-135Ω inputs and the APCSCR25/40/50 PWM can only accept PWM inputs.

All command inputs are not isolated from the 24VAC power Input.  If more than one APCSCR-1P is to be used from the same drive signal, separate power transformers are required.  The type of command input can be configured via the dipswitch.  The default setting is 0-5V/potentiometer.

Top of Page


4.2 PWM Command Input
The PWM drive signal used to control the APCSCR25/40/50 can range from 5-30VDC (peak).  Best performance will be obtained when using a TBD.

TBD logic range TBD open Collector drive, etc.

Top of Page


4.2.1 Input Fail-Safe Protection
If the signal sent to the APCSCR-1P's command input should become electrically open the control output will be forced to an off state.

Top of Page


4.3 Line Voltage Compensation
The APCSCR25/40/50-1P's line voltage compensation keeps the power constant on the load as the line voltage changes.  The line voltage is measured via the 24VAC power applied to the APCSCR25/40/50-1P module. To use the line voltage compensation feature properly, the 24VAC power transformer should be fed from the same mains as the load circuit to be controlled as per the wiring diagrams at the end of this document.   Line voltage compensation can be set on or off using the configuration dipswitch.  The default setting is on.  To set the Line Voltage Compensation to OFF, set switch # 6 to the ON position.

Top of Page


4.4 Soft Start
The soft start feature ramps up to the command value over a period of approximately 20 seconds.  The soft start time resets if the command value goes to zero (less than 4% of the input range) or power is cycled.  Soft start is useful on high inrush heaters such as Quartz, Molybdenum, Tungsten, or Graphite heaters.  Soft Start can be set on or off using the configuration dipswitch.  The default setting is off.

Top of Page


4.5 Voltage Limit
The Voltage Limit option is only available to the APCSCR25/40/50-1P.  It can be ordered as APCSCR-1P-VL.  The Voltage Limit feature is used in conjunction with the line voltage compensation feature to limit the actual voltage delivered to the load.  The voltage limit is adjustable via a potentiometer located just below the input terminal block.  For this feature to work correctly, line voltage compensation must be turned on and the power transformer for the APCSCR25/40/50-1P must be connected to the same mains as the load power is connected to.

Top of Page


4.5.1 Voltage Limit Adjustment Procedure
The Voltage Limit is adjustable from 5% to 100% of the max load voltage.  Setting the Voltage Limit potentiometer half way corresponds to a power limit of approximately 55% or a voltage limit of 70% of the max load voltage.  The best way to set the voltage limit is using a voltmeter connected across the load.  With the command input set to approximately 100% (on startup) turn the pot fully CCW.  Then just turn the pot CW until the desired output voltage is achieved.  For this feature to work as a true voltage limit, it is important that the Line Voltage Compensation switch be set to ON (this is the OFF position of switch # 6).

If the line voltage compensation is set to OFF the voltage limit will act as a
percentage of output limit and the absolute voltage limit will change with line voltage.

Top of Page


4.6 Configuration Dipswitch
The configuration dipswitch is used for setting up the command input, line voltage compensation and soft.  Using a pen point gently push the switch up for on and down for off according to the setup outlined in the table below.

COMMAND INPUT 1 2 3 5
0-5V (Default)
Off
Off
Off
Off
Potentiometer
Off
Off
Off
Off
0-10V
Off
Off
On
Off
4-20mA
Off
On
Off
On
1-5V
Off
Off
Off
On
2-10V
Off
Off
On
On
0-135Ω*
On
Off
Off
Off
PWM**
Off
Off
Off
Off
*Module must be ordered as APCSCR25/40/50-1P-135 for 0-135Ω input support.
**Module must be ordered as APCSCR25/40/50-1P-PWM for PWM input support.

FEATURE ENABLE

 4 6
Line Voltage Comp Enable (Default)
Off
Off
None
Off
On
Soft Start Only
On
On
Soft Start & Line Voltage Comp Enabled
On
Off
Contact Anacon Power & Controls for applications assistance - 800-466-9080.
Top of Page

4.7 Control Output

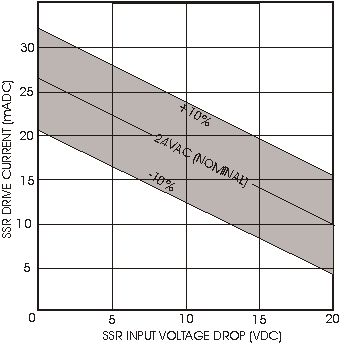

The APCSCR-1P SSR output drive is a DC pulsed current limited 10V/15mA (nominal) drive signal.  This is more than enough current for driving most 3-32V standard SSRs, however it is still important to review the data sheet for the SSR you would like to use for compatibility with the APCSCR25/40/50-1P's output drive.  The following graph will allow you to verify the SSR's compatibility with the APCSCR25/40/50-1P over wide input voltage variations.

APCSCR25/40/50-1P Output Drive Current vs.
SSR Input Voltage Drop
Top of Page

4.8 Output LED
The APCSCR25/40/50-1P's RED output LED will turn on when the output is on and increase in intensity as the power output is increased.  Because the drive signal varies considerably to give linear power output, the LED should only be used as a rough indication of SSR Drive and not actual power output.  The output LED is wired in series with the SSR's input.  If there is a poor connection on the SSR input terminals or a problem with the SSR's Input, the output LED will not become energized.

Top of Page


4.9 Three Phase Operation

Two APCSCR25/40/50-1Ps can be used to control two poles of a three phase load.

Three APCSCR25/40/50-1Ps can be used to control three poles of a three phase load. The Module should be wired as shown in the wiring diagrams, using one transformer per each leg to be controlled.

Top of Page


4.9.1 Three Phase Special Wiring Considerations
The APCSCR25/40/50-1P derives its AC synchronization from the applied 24VAC power.  Each 24VAC transformer's primary must be connected to the corresponding leg power to be controlled by each
APCSCR25/40/50-1P.

Top of Page


4.9.2 Three Phase Wiring of Command Inputs
The command inputs should be connected in parallel if 0-5V or 0-10V is selected and in series if 4-20mA is selected.

Top of Page


5 Electrical Specifications
Command Inputs
4-20mA, 0-10V, 0-5V, 0-135Ω, Pot, PWM
Input Impedance
10K Ω (0-10V), 250Ω (4-20mA), 100K Ω (0-5V)
0-135Ω  Excitation Current
13mA max
Control Output
SSR Drive, DC pulse, nominally 10V at 15mA
Response Time
50mS
PWM Input Period Range
1-5 seconds
Output Linearity
+/-2%
External Potentiometer Res.
1K Ω-25K Ω
Line Voltage Comp. Range
+15%/-15% up to 100% output
Regulation
2%
Soft Start Period
20 Seconds to reach 100% output
Voltage Limit Range
5-100% of max load voltage
Ambient Temperature Range
0 to 70 °C
Power Supply
24VAC +15/-15%, Power consumption less than 2 Watts
Line Frequency Range
47-63 Hz
Top of Page

6 Mechanical Dimensions
APCSSRMAN-1P Max Height is 0.6"
Assembly is .6" higher with Controller Card on top.

Top of Page


7 Contact Information
Anacon Power & Controls
800-466-9080
www.anaconpower.com

Top of Page


8 Wiring Diagram (4-20mA, 0-5V, 0-10V Inputs)

Top of Page

9 Wiring Diagram (Potentiometer Input)

Top of Page

10 Wiring Diagram (0-135Ω Input)

Top of Page

11 Wiring Diagram (PWM Input)

Top of Page

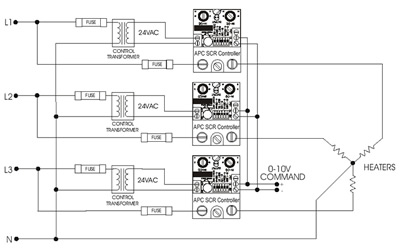

12 Wiring Diagram (3 Phase 4 Wire Y Connection)

Top of Page

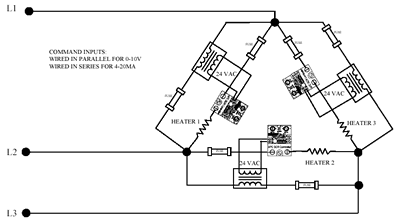

13 Wiring Diagram (3 Phase Inside Delta)
